Automatic ALPR ANPR Parking License Plate Recognition Parking Ticket System Parking Payment Machine
Discriptions of Smart Parking Ticket System:
SEWO smart parking system is wholly developed,modified and owned by Shenzhen Sewo Science & Technology Co.,Ltd. This system is a dynamic and intelligent system adapted to most intelligent parking management requirements. Benefits can be brought to parking facility operators,managers, owners and users,etc.
SEWO-T800 rfid parking lot management system is a classical series Parking System for managing pay-to-park facilities with high traffic flow, for both hourly and registered parkers. This system automatically dispenses card to hourly parkers, and registered parkers get access and leave by self-service swiping their cards on Entry Station & Exit Station respectively, or enter and leave without stop if tag on window shield was read by long range reader. It is ideal solution for parking lots of premises such as shopping center, exhibition center, hospitals, airports etc.
Advantage of SEWO Ticket Parking System
1, International general icon, real-time distinguish system working condition is normal or not.
2, High brightness LED information display, in strong light can still clearly shows.
3, the panel material is the toughened glass with new technique, and are impacting-proof, scratching proof, with thorough rainproof design.
4, big panel structure, easy installation, maintain, debugging.
5, industrial-class electronic component, can stably operate in bad environment.
6, the panel mouth can be inserted at two sides and water-proof.
7, with night background lighting system, this system can create unique beautiful shining prompt in night view.
8, readable IC card (charge fee off-line ),readable ID card(including close and long distance)8,vehicle detecting signal can be read when receiving signal from vehicle or without signal by manual work
9, communicate with computer online or offline.
10, deputy communication can connect with display, and voice system, and has the ability of turning the barrier off or on, and detecting the statement of the barrier.
11, The system can control the shining prompt pole, and connect with the card machine or paper machine, and full seat light box. It also can be using in nested parking lot.
12, It is suitable for common changing system, and handing card (temporary card) at the exit and changing fee at the center management mode.
Specifications of T800 Smart Parking System:
| Product Name | SEWO-T800 |
| Dimension | 1360*360*260mm |
| Housing Material | Steel & Tempered glass |
| Housing Color | Golden |
| Support Built-in Reader | IC/ID /Ticket |
| Mode of Communication | Base RS485. Rear TCP/IP |
| Communication Transmission Distance | 1200m(RS485) |
| Data Transmission Speed | 4800bps/100m |
| Offline Storage Capacity | 10000pcs(Extendible) |
| Blacklist Capacity | 1000pcs(Extendible) |
| Working Temperature | -30℃--70℃ |
| Working Conditional | Indoor / Outdoor |

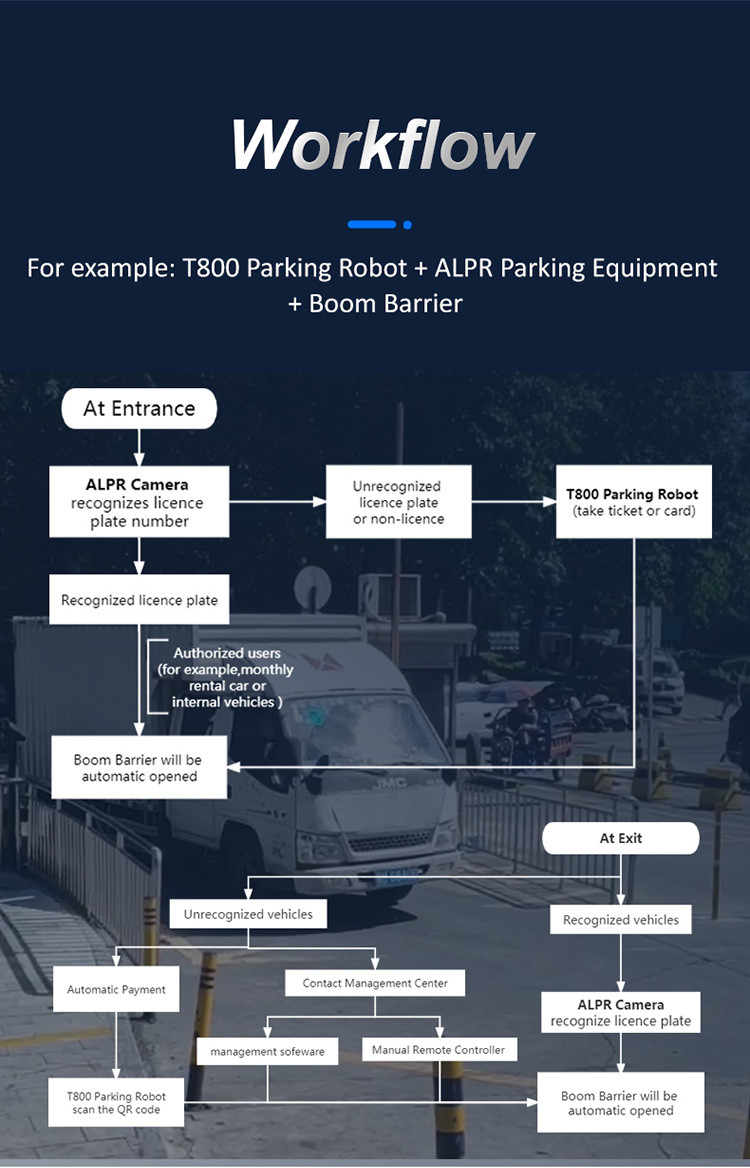

Workflow of SEWO Ticket Parking with ALPR Parking System
It can be used for toll parking lots equipped with monthly rental card, stored-value card or temporary parking pass.
For monthly rental cards users and stored-value cards users:
Enter the authorized license plate information into the system management software. When authorized vehicles enter the parking lot, the alpr parking machine automatically captures, recognizes, and processes the vehicle's license plate information, and transmits the recognition results to the management software. The recognition results are used to query the database, and when the recognition is correct, the vehicle is automatically released and the license plate number of the vehicle is displayed on the screen; The vehicle automatically descends after passing through the rear gate, achieving non-stop passage. The exit as same as in entrance.
For temporary parking car:
At the entrance, the vehicle loop detector detects the car’s entry, after driver takes the ticket following voice instruction, the entrance boom barrier opens automatically;
At the exit, the Vehicle loop detector detects the car’s entry, then the user needs to scan the barcode. An LED screen will display parking information and parking fee. After parking lot administrator confirms the payment, they will send the opening signal through management software to boom barrier, then the boom barrier open automatically.
FAQ
1, What is the strength of your company in this industry?
Our company pays much attention to bringing and developing new technique and products since the foundation in 2003. Our brand “SEWO” has ranked among the top 10 famous brands of car parking systems and facilities in China.
2, What is the advantage products of your company?
Shenzhen Sewo Technology Ltd. Is a professional high-tech enterprise, which integrates the development, manufacturing, marketing , and service of Smart Parking Management System, Flap Barrier, Tripod Turnstile, Swing Gate, Parking Guidance System, Barrier Gate, Parking Lock, Access Control Systems and other related security products.
3, How about the quality of your product?
With our exquisite technology and strict quality testing system, we passed “CE” and “ISO9001:2008” international quality assessment standards. Our company also has won many honors,such as “China Top 10 Parking Management System Supplier”, “AAA grade quality, service and prestige enterprise in China”, and so on. Professional R&D team has strong capacity to be committed to continuously creating high quality products and service.
4, How about some customization request?
We support OEM / ODM service , more than 20 years industry experience will bring appropriate design for you, no only products, but also a smart access management solution expert.
5, Do you have agency for after-sales service?
Any question about products , you can find our sales anytime. We will provide life-time technology support. We have established many branch offices and gained much agents at home. Our sales and service network spreads all over the world. We also have extensive sales channels in Southeast Asia, the Middle East, Africa, Europe, and America. We warmly welcome customers or agents all over the world to join us to construct an intelligent , safe, convenient and harmonious society.
6, How about the delivery time?
Regular products need 5-10 working days.
The delivery time of customized products is according to your requirement.
